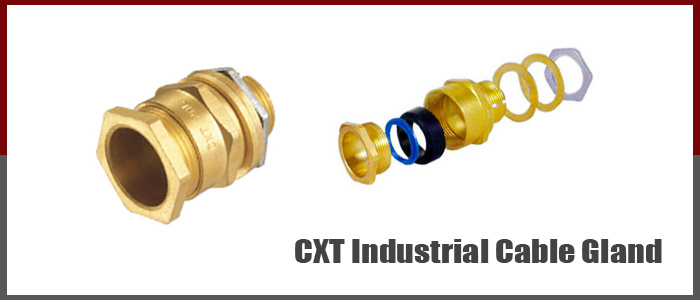

Brass outdoor and indoor cable gland suitable for braided type, plastic or rubber sheathed cables.This gland provides seal on outer sheath. Recommended to use with PVC shroud for additional ingress protection.
 |
Technical Data :
| Type | : | CXT |
| Design Specification | : | BS 6121 : Part I : 1989 |
| Gland Material | : | Brass |
| Ingress protection | : | IP66 |
| Finish | : | Plain Brass or Nickel Plated |
| Seal Material | : | Thermoplastic Elastomer |
| Cable Type | : | Braided Armour Type |
| Sealing Technique | : | Displacement Type |
| Sealing Area | : | Outer Sheath |
Gland |
Cable Dimensions Accommodated |
Gland Dimensions |
E-Code |
|||||
Overall Diameter |
Dia. “A” |
Dia. “B” |
Metric Entry Thread “C” |
Minimum Thread Length “D” |
Across Flat “E” Max. |
|||
Min. |
Max. |
|||||||
16 |
3.5 |
8.5 |
11.9 |
12.0 |
16 |
15 |
21.3 |
CXTCM16B |
20 SS |
3.5 |
8.5 |
10.2 |
15.4 |
20 |
15 |
23.6 |
CXTCM20SSB |
20 S |
8.0 |
11.5 |
11.9 |
15.4 |
20 |
15 |
23.6 |
CXTCM20SB |
20 L |
11.0 |
13.5 |
14.5 |
17.9 |
20 |
15 |
26.85 |
CXTCM20LB |
25 S |
13.0 |
16.5 |
16.5 |
20.3 |
25 |
15 |
30.5 |
CXTCM25SB |
32 |
19.0 |
25.5 |
26.9 |
31.7 |
32 |
15 |
41.3 |
CXTCM32LB |
40 L |
25.0 |
32.0 |
32.5 |
37.1 |
40 |
15 |
47.0 |
CXTCM40LB |
50 S |
31.5 |
37.0 |
38.6 |
44.2 |
50 |
15 |
55.0 |
CXTCM50SB |
50 L |
36.5 |
43.0 |
44.0 |
48.9 |
50 |
15 |
59.95 |
CXTCM50LB |
Dimensions in mm |
||||||||
