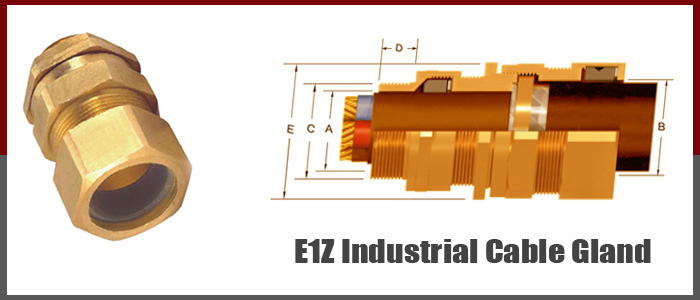

E1Z INDUSTRIAL CABLE GLAND

Brass outdoor and indoor cable glands suitable for steel tape armoured, plastic or rubber sheathed cable. Provides grip to the cable with outer and inner seals. Used in most climatic conditions weatherproof and waterproof. Earth tags to be used for earth continuity. E1Z brass glands are also supplied with integral earth facilities. Recommended to use PVC shroud for additional ingress protection.

e1z industrial cable gland

Technical Data :

Type : E1Z
Design Specification : BS 6121 : Part I : 1989
Gland Material : Brass
Ingress protection : IP 66
Finish : Plain Brass or Nickel Plated
Seal Material : Thermoplastic Elastomer
Cable Type : Steel Armour Tape
Armour Clamping : 3 Part Armour Lock
Sealing Technique : Compression and Displacement Type
Sealing Area : Inner and Outer Sheath




Gland
Size

Cable Dimensions Accommodated

Gland Dimensions

E-Code

Under Armour Dia.

Overall Dia.

Steel Tape Thickness

Dia. “A”

Dia. “B”

Metric Entry Thread “C”

Minimum Thread Length “D”

Across Flat “E” Max.

Min.

Max.

Min

Max.

16

6.3

8.6

8.0

13.2

0.15/0.35

11.9

17.0

16

15

24.10

E1ZCM16B

20 S

7.8

11.6

8.8

15.8

0.15/0.35

11.9

17.0

20

15

24.10

E1ZCM20SB

20 L

11.8

13.9

11.7

19.5

0.15/0.5

14.5

20.3

20

15

27.17

E1ZCM20LB

25 S

13.0

15.5

17.0

25.8

0.15/0.5

16.5

26.4

25

15

32.75

E1ZCM25SB

25 L

14.0

19.9

17.0

26.0

0.15/0.5

20.7

27.4

25

15

35.85

E1ZCM25LB

32

19.7

25.2

23.5

33.5

0.15/0.55

26.9

34.1

32

15

42.90

E1ZCM32B

40 S

26.5

29.4

29.0

38.5

0.2/0.6

29.6

39.6

40

15

49.30

E1ZCM40SB

40 L

32.1

32.1

39.9

39.9

0.2/0.6

32.5

41.8

40

15

50.80

E1ZCM40LB

50 S

32.2

38.1

38.0

46.0

0.5/0.8

38.6

50.2

50

15

61.70

E1ZCM50SB

50 L

38.4

43.2

39.5

51.0

0.5/0.8

44.0

52.8

50

15

63.75

E1ZCM50LB

63 S

44.1

50.0

50.0

58.9

0.5/0.8

50.3

61.9

63

15

73.90

E1ZCM63SB

63 L

50.1

55.9

51.3

65.3

0.5/0.8

56.4

66.5

63

15

78.50

E1ZCM63LB

75 S

56.0

61.9

62.2

71.6

0.5/1.0

62.2

74.2

75

15

87.40

E1ZCM75SB

75 L

62.0

67.9

62.5

78.0

0.5/1.0

68.3

78.5

75

15

96.00

E1ZCM75LB

90

68.0

74.0

68.0

88.0

0.5/1.0

80.3

90.2

90

20

105.30

E1ZCM90B
