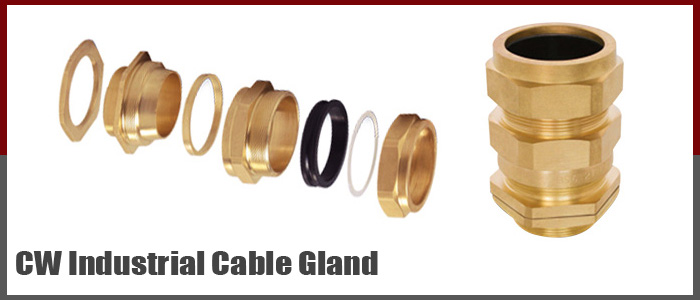

Brass outdoor and indoor gland most popularly used with single wire armoured, plastic or rubber sheathed cable. Terminates and secured cable armouring and outer seal grips sheath of cable thus ensuring mechanical strength and earth continuity. Earth tags to be used for earth continuity. CW Industrial Cable Gland are also supplied with integral earth facilities. Recommended to use PVC shroud for additional ingress protection.
 |
Technical Data :
| Type | : | CW |
| Design Specification | : | BS 6121 : Part I : 1989 |
| Gland Material | : | Brass |
| Ingress protection | : | IP 66 |
| Finish | : | Plain Brass or Nickel Plated |
| Seal Material | : | Thermoplastic Elastomer |
| Cable Type | : | Steel Wire Armour |
| Armour Clamping | : | 3 Part (With Lock Nut) |
| Sealing Technique | : | Compression Type |
| Sealing Area | : | Outer Sheath |
|
Cable Dimensions Accommodated |
Gland Dimensions |
E-Code |
||||||
Under Armour Dia. Max. |
Overall Dia. Max. |
Armour Wire Dia. |
Dia. “A” |
Dia. “B” |
Metric Entry Thread “C” |
Minimum Thread Length “D” |
Across Flat “E” Max. |
||
16 |
6.0 |
13.2 |
0.9 |
9.5 |
16.9 |
16 |
10 |
24.2 |
CWCM16B |
20 S |
11.6 |
15.8 |
0.9/1.25 |
12.3 |
17.0 |
20 |
10 |
24.0 |
CWCM20SB |
20 L |
13.9 |
19.5 |
0.9/1.25 |
14.3 |
20.3 |
20 |
10 |
27.17 |
CWCM20LB |
25 S |
15.5 |
25.8 |
0.9/1.25 |
18.3 |
26.4 |
25 |
10 |
32.75 |
CWCM25SB |
25 L |
19.9 |
26.0 |
0.9/1.25 |
20.8 |
26.9 |
25 |
10 |
34.3 |
CWCM25LB |
32 |
25.2 |
33.5 |
1.6/2.0 |
26.9 |
34.1 |
32 |
10 |
42.9 |
CWCM32LB |
40 S |
29.4 |
38.5 |
1.6/2.0 |
31.5 |
39.6 |
40 |
15 |
49.3 |
CWCM40SB |
40 L |
32.1 |
39.9 |
1.6/2.0 |
32.5 |
41.8 |
40 |
15 |
50.8 |
CWCM40LB |
50 S |
39.5 |
49.0 |
2/2.5 |
40.9 |
50.2 |
50 |
15 |
61.7 |
CWCM50SB |
50 L |
43.2 |
51.0 |
2/2.5 |
44.4 |
52.8 |
50 |
15 |
63.75 |
CWCM50LB |
63 S |
50.6 |
58.9 |
2.5 |
51.8 |
61.9 |
63 |
15 |
73.9 |
CWCM63SB |
63 L |
55.9 |
65.3 |
2.5 |
56.4 |
66.5 |
63 |
15 |
78.5 |
CWCM63LB |
75 S |
61.9 |
71.6 |
2.5 |
63.2 |
74.2 |
75 |
20 |
87.4 |
CWCM75SB |
75 L |
67.9 |
78.0 |
2.5 |
68.6 |
78.5 |
75 |
20 |
96.0 |
CWCM75LB |
90 |
74.0 |
88.0 |
2.5 |
79.0 |
90.2 |
85 |
20 |
105.3 |
CWCM90LB |
Dimensions in mm |
|||||||||
